Excalibur Screwbolts

Updated: 03/12/09Hookbolt (HYB) 6mm

diagram 01

Click thumbnail to
view large image

VIDEO DOWNLOADS

FURTHER INFORMATION

For additional technical data please call the Sales Desk on
01702 206962 or 01702 207909



DOWNLOAD AND PRINT

Please note: From time to time, materials and specifications are changed to improve performance, please check for the latest information.

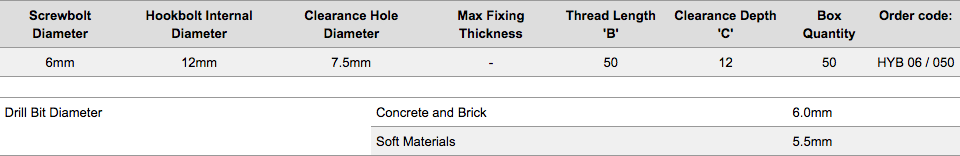

HYB 6mm   Options
Screwbolt Diameter Hookbolt Internal Diameter Clearance Hole Diameter Max Fixing Thickness
Thread Length 'B'
Clearance Depth 'C'
Box Quantity Order code:
6mm 12mm 7.5mm - 50 12 50 HYB 06 / 050
Drill Bit Diameter Concrete and Brick 6.0mm
Soft Materials 5.5mm

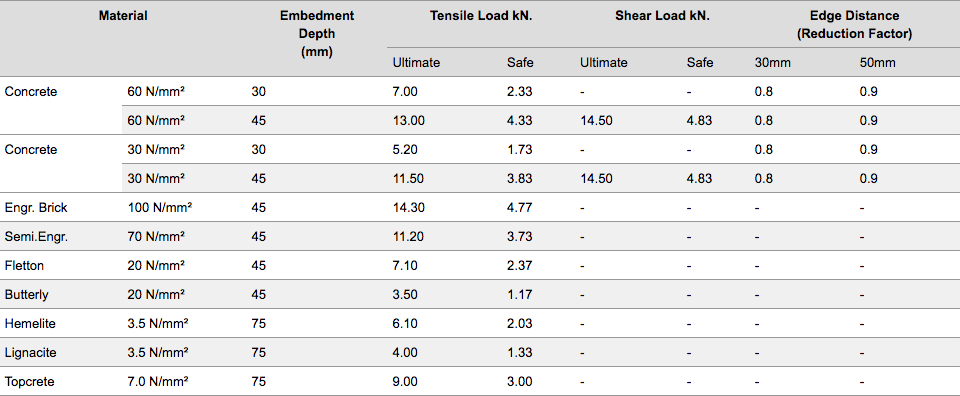

Ultimate & Safe Load Characteristics based on 3:1 ratio
Material Embedment
Depth
(mm)
Tensile Load kN. Shear Load kN. Edge Distance
(Reduction Factor)
Ultimate Safe Ultimate Safe 30mm 50mm
Concrete 60 N/mm² 30 7.00 2.33 - - 0.8 0.9
60 N/mm² 45 13.00 4.33 14.50 4.83 0.8 0.9
Concrete 30 N/mm² 30 5.20 1.73 - - 0.8 0.9
30 N/mm² 45 11.50 3.83 14.50 4.83 0.8 0.9
Engr. Brick 100 N/mm² 45 14.30 4.77 - - - -
Semi.Engr. 70 N/mm² 45 11.20 3.73 - - - -
Fletton 20 N/mm² 45 7.10 2.37 - - - -
Butterly 20 N/mm² 45 3.50 1.17 - - - -
Hemelite 3.5 N/mm² 75 6.10 2.03 - - - -
Lignacite 3.5 N/mm² 75 4.00 1.33 - - - -
Topcrete 7.0 N/mm² 75 9.00 3.00 - - - -

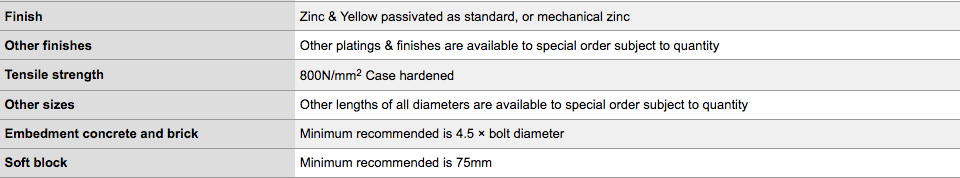

HYB 6mm  TECHNICAL DATA
Finish Mechanical Zinc as standard, or Zinc & Yellow passivated
Other finishes Other platings & finishes are available to special order subject to quantity
Tensile strength 800N/mm2 Case hardened
Other sizes Other lengths of all diameters are available to special order subject to quantity
Embedment concrete and brick Minimum recommended is 4.5 × bolt diameter
Soft block Minimum recommended is 75mm

All dimensions in millimetres (mm)
