Updated: 01/07/12Excalibur Screwbolt Hexagon Head (HSB) 6mm
Click thumbnail to
view large image
FURTHER INFORMATION
For additional technical data please call the Sales Desk on
01702 206962 or 01702 207909
DOWNLOAD AND PRINT
Please note: From time to time, materials and specifications are changed to improve performance, please check for the latest information.
HSB 6mm Options
| Screwbolt Diameter |
Head Details and Diameter |
Clearance Hole Diameter |
Max Fixing Thickness 'A'
|
Thread Length 'B'
|
Clearance Depth 'C'
|
Box Quantity |
Order code: |
| 6mm |
10mm Hex. Drive plus
No. 3 Pozi Recess *
Flange Diameter 13mm |
7.5mm |
3 |
30 |
12 |
100 |
HSB 06 / 030 |
| 6mm |
7.5mm |
20 |
50 |
12 |
100 |
HSB 06 / 050 |
| 6mm |
7.5mm |
35 |
75 |
12 |
100 |
HSB 06 / 075 |
| 6mm |
7.5mm |
50 |
100 |
12 |
100 |
HSB 06 / 100 |
|
|
|
|
|
|
|
| Drill Bit Diameter |
Concrete and Brick |
6.0mm |
| Soft Materials |
5.5mm |

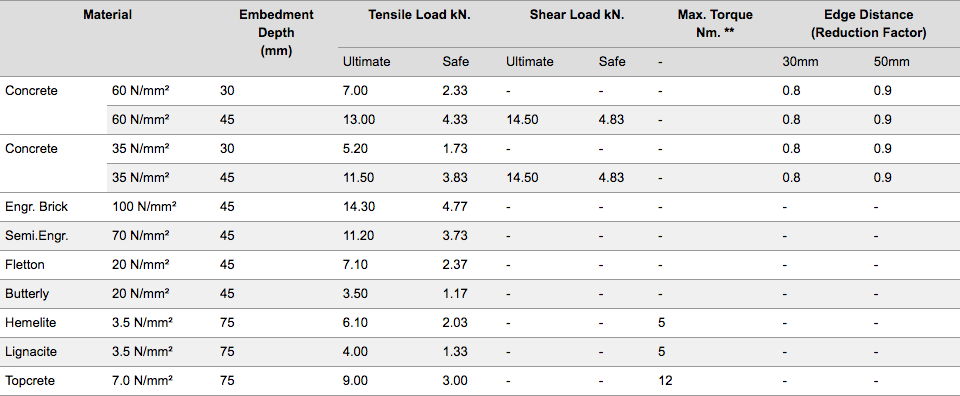

Ultimate & Safe Load Characteristics based on 3:1 ratio
| Material |
Embedment
Depth
(mm) |
Tensile Load kN. |
Shear Load kN. |
Max. Torque
Nm. ** |
Edge Distance
(Reduction Factor) |
| Ultimate |
Safe |
Ultimate |
Safe |
- |
30mm |
50mm |
| Concrete |
60 N/mm² |
30 |
7.00 |
2.33 |
- |
- |
- |
0.8 |
0.9 |
| 60 N/mm² |
45 |
13.00 |
4.33 |
14.50 |
4.83 |
- |
0.8 |
0.9 |
| Concrete |
35 N/mm² |
30 |
5.20 |
1.73 |
- |
- |
- |
0.8 |
0.9 |
| 35 N/mm² |
45 |
11.50 |
3.83 |
14.50 |
4.83 |
- |
0.8 |
0.9 |
| Engr. Brick |
100 N/mm² |
45 |
14.30 |
4.77 |
- |
- |
- |
- |
- |
| Semi.Engr. |
70 N/mm² |
45 |
11.20 |
3.73 |
- |
- |
- |
- |
- |
| Fletton |
20 N/mm² |
45 |
7.10 |
2.37 |
- |
- |
- |
- |
- |
| Butterly |
20 N/mm² |
45 |
3.50 |
1.17 |
- |
- |
- |
- |
- |
| Hemelite |
3.5 N/mm² |
75 |
6.10 |
2.03 |
- |
- |
5 |
- |
- |
| Lignacite |
3.5 N/mm² |
75 |
4.00 |
1.33 |
- |
- |
5 |
- |
- |
| Topcrete |
7.0 N/mm² |
75 |
9.00 |
3.00 |
- |
- |
12 |
- |
- |
**With softer materials, care should be taken not to exceed the maximum
recommended torque, as this may result in the de-grading of the matrix.
HSB 6mm TECHNICAL DATA
| Material |
Boron Steel BS3111/9/2.1.A |
| Finish |
Mechanical Zinc as standard, or Zinc & Yellow passivated
|
| Other finishes |
Other platings & finishes are available to special order subject to quantity |
| Tensile strength |
800N/mm2 Case hardened |
| Other sizes |
Other lengths of all diameters are available to special order subject to quantity |
| Embedment concrete and brick |
Minimum recommended is 4.5 × bolt diameter |
| Soft block |
Minimum recommended is 75mm |
For Edge and Spacing Distances minimum 5 diameter and between 5-10 diameter see Reduction Factors
